Thermostats and Time switches

You have also come to the right place for controlling your Mark HVAC unit. We have a wide range of room thermostats and clock thermostats.

230V Room Thermostat

Required temperature adjustable from 10…30°C
Switch contact voltage free max. 4A / 230V

View this product

Clock Thermostat RAM 811

Language can be set to English, German, Dutch, French, Italian or Spanish.
NO contact, voltage free max. 10A(2)/250V~
Temperature measurement range 0…50°C increments of 0.1°C.
Temperature setting range 2…30°C in stages from 0.2°C.
3 control programmes, freely programmable with 40 memory points.

View this product

Zone control Infra

Delivery: Control panel with external display
Size ext. display (WxHxD): 160x98x43mm
Languages: English, French, German and Dutch
Protection class: IP20
Mounting of display: built-in / wall installation

View this product

PinTherm Connect digital room thermostat

Power: 230Vac / 50Hz
Own consumption: < 9W
Clock: 24 hour clock with automatic summer/winter time switching
Switching programs: 3 switching programs a day
Switching differential: 0,1 – 3K

View this product

PinTherm Infra Connect digital room thermostat

Power : 230Vac / 50Hz
Own consumption : < 9W
Clock : 24 hour clock with automatic summer/winter time switching
Switching programs : 3 switching programs a day
Switching differential : 1°C

View this product

PinTherm Infra HE Connect digital temperature control

Power: 230Vac / 50Hz
Dimensions: 376 x 300 x 120mm (WxHxD)
Protection class: IP54
Mounting of display: built-in / wall installation
Maximum number of Infra HE’s: 8

View this product

PinTherm Mistral room thermostat

Power: 230Vac / 50Hz
Clock: 24 hour clock with automatic summer/winter time switching
Switching programs: 3 switching programs a day
Switching differential: 0,1 – 3K
Dimensions: 166 x 160 x 106mm (lxwxh)

View this product

OptiTherm+ digital clock thermostat

Push-button for switching the heating mode on and off.
Push-button for switching the fan of the air heater(s) on and off.
LED to indicate a malfunction along with notification on the display in the form of a failure code.
Reset button to release a burner malfunction.
An annual clock with 20 program blocks, clock program Mon-Fri, Tues-Fri, Sat-Son, daily or every day.

View this product

Waterproof Room Thermostat

Bulb sensor filled with liquid.
Adjustment range from -5…+28°C.
Differential adjustable from 2…8K.
Material protection class and resistant to splashing in accordance with IP65
Switching power 230V~, 15(8)A

View this product

Chronotherm Touch modulating thermostat

Display: large touch screen with backlight.
The touch screen display can be locked in whole or in part.
Cleaning ability for the touch screen wihtout changing the settings.
Clock program: week program.
Adjustable up to 6 periods per day.

View this product

Room thermostat with speed control

Power supply: 230V/50Hz, 230V/60Hz or 24V/60Hz
Protection class: IP30
Room temperature adjustable from 0…40°C
Transport / storage temperature: -10…+50°C
Humidity limits: 20…80% RH (not condensing)

View this product

Surface contact thermostat

Temperature adjustable from 20…90°C per 5°C.
Protection class IP40.
Voltage free exchange contact.
Switching power 24…230V~, 16(4)A, min. 150mA at 24V~.
Ambient temperature -35…+65 .

View this product

Frost Protection Thermostat

Adjustment range from -10…+12°C.
Switch differential 1K.
Protection class IP40.
Voltage free exchange contact.
Switching power 24…230V~, 15(8)A, min. 150mA at 24V~.

View this product

Digital Time Switch

Simple to use
8 on/off cycles with 13 different day blocks, programmable by day or block of days.
4 different operating positions: manually on constantly, manually off constantly, adjustable countdown timer, automatic operation in accordance with timer switching programm.
Integrated countdown timer.
Suitable for wall installation or installation on DIN rail.

View this product

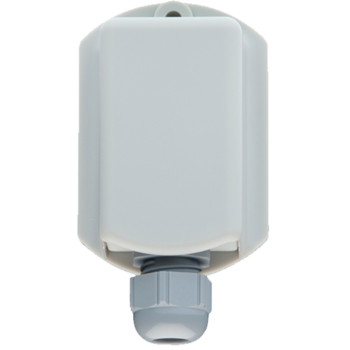

External Room Sensor

0629194

View this product

Types of thermostats

Controlling a Mark unit can be carried out in many ways. Everyone has their own ideas and wishes about this. Mark Climate Technology therefore has many options for this, from standard to project-based. For standard control, we have various room thermostats and clock thermostats, including Opentherm and modulating thermostats. Zone control is also an option.

Our range of Pintherm Connect thermostats are digital thermostats that are provided with a PIN code security and can be easily connected to the building management system (BMS). Thanks to several switching programs, it is possible to set the desired temperature for several situations.

Smart heating controls

New in our range are the Internet (web-based) controllable thermostats and controllers. The settings can be read and/or changed using Modbus or Ethernet. This allows remote connection to the thermostat via a web browser or a mobile app. You can operate or change the thermostat anywhere in the world with a telephone, tablet or laptop/PC.

The right thermostat for your Mark unit

Would you like advice on which thermostat or controller is suitable for your air heater, radiant heater or ventilation system? Please contact our technical advisors. We are happy to give you advice without any obligation. Send an e-mail to sales@markeire.com or contact us by telephone on +353(0)2645334.
